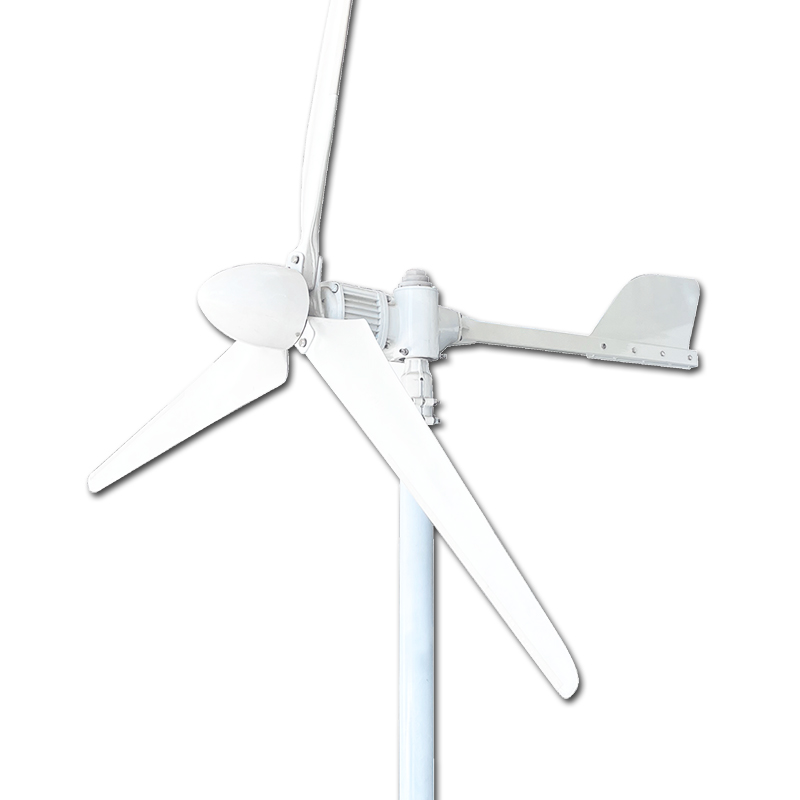

GH-3KW Horizontal Axis Wind Turbine
Technical specification
| Model | GH-1KW | GH-2KW | GH-3KW | GH-5KW |
| Rated Power | 1000W | 2000W | 3000W | 5000W |
| Max Power | 1500W | 3000W | 4000W | 7000W |
| Start Wind speed | 3m/s(6.72mph) | |||
| Rated Wind Speed | 9m/s(20.1mph) | 9m/s(20.1mph) | 9m/s(20.1mph) | 10m/s(22.4mph) |
| Working Wind speed | 4-25m/s(8.95-56 mph) | |||
| Safety Wind speed | 50m/s(112mph) | |||
| Blades Rotor Diameter | 2.8M(9.18ft) | 3.6M(12.47ft) | 4.6M(15.1ft) | 6M(16.4ft) |
| Blades Material&Quantity | FRP /3PCS | |||
| Top Weight | 46kg | 60kg | 130kg | 180kg |
| Tower Height | 6m(39.36ft.) Free stand tower | 6m, 12m available | 8m, 12m available | 8m(26.24ft.) Free folding tower |
| Generator Type | Direct-drive permanent magnet generator 3-phase AC PM | |||
| Rated Speed | 360RPM | 320RPM | 240RPM | 250RPM |
| Option Voltage | 48VAC | DC24v-DC380v | DC48v-DC380v | 48-500VAC |
| Protection Grade | IP54 | |||
