GH-3KW kwụ ọtọ axis ifufe turbine
Nkọwa nka nka
| Nlereanya | GH-1KW | GH-2KW | GH-3KW | GH-5KW |
| Enyere ike | 1000W | 2000W | 3000W | 5000W |
| Ike kachasị | 1500W | 3000W | 4000W | 7000W |
| Malite ọsọ ifufe | 3m/s (6.72mph) | |||
| Egosiri ọsọ ikuku | 9m/s (20.1mph) | 9m/s (20.1mph) | 9m/s (20.1mph) | 10m/s (22.4mph) |
| Ọsọ ifufe na-arụ ọrụ | 4-25m/s (8.95-56 mph) | |||
| Nchekwa ọsọ ifufe | 50m/s (112mph) | |||
| Akara igwe rotor | 2.8M (9.18 ft) | 3.6M (12.47 ft) | 4.6M(15.1ft) | 6M(16.4ft) |
| Ihe agụba & ọnụọgụgụ | FRP / 3 PCS | |||
| Ibu dị elu | 46kg | 60kg | 130kg | 180kg |
| Ụlọ elu Elu | 6m(39.36ft.) Ụlọ elu kwụ ọtọ | 6m, 12m dị | 8m, 12m dị | 8m(26.24ft.) Ụlọ elu mpịachi n'efu |
| Ụdị Generator | Igwe ọkụ magnet na-adịgide adịgide na-eduzi 3-phase AC PM | |||
| Enyere ọsọ ọsọ | 360RPM | 320RPM | 240RPM | 250RPM |
| Voltaji nhọrọ | 48VAC | DC24V-DC380V | DC48V-DC380V | 48-500VAC |
| Ọkwa nchekwa | IP54 | |||

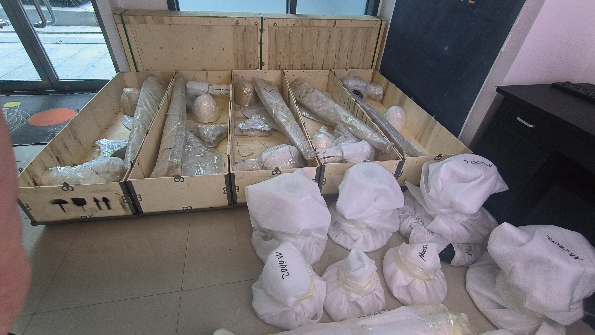

Nkwakọ ngwaahịa
