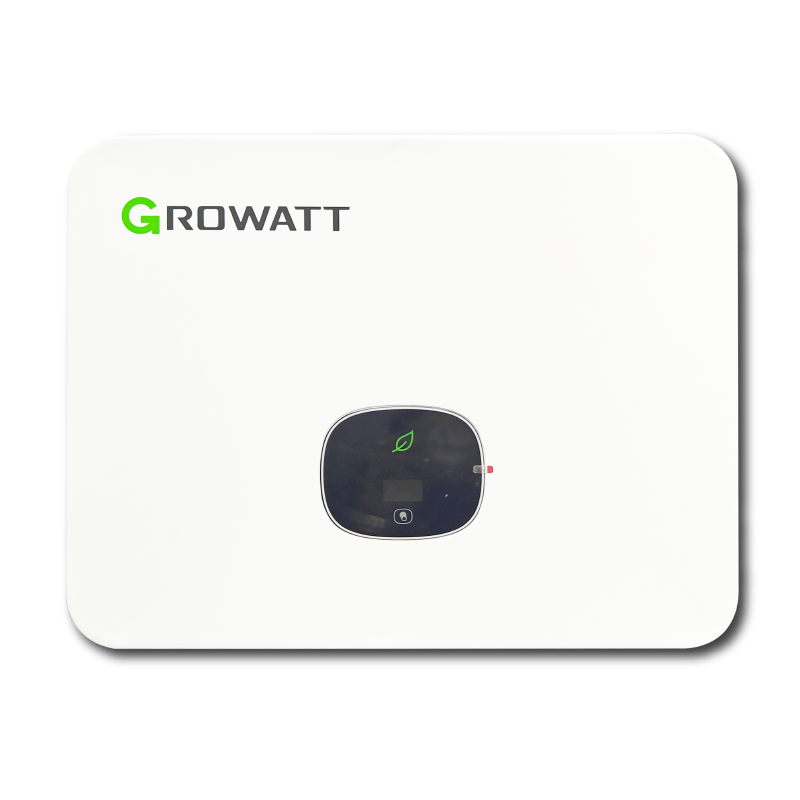

1.5-80KW Kuri-grid Solar Inverter
Ibyiza
MAC 15 ~ 36KTL3-XL
MP 3 MPPTS
※ 220V Igisubizo cyicyiciro cya gatatu
Gusuzuma neza
Efficiency Gukora neza kugeza kuri 98.8%
Configuration Iboneza rya WiFi ryaho
※ OLED yerekana no gukoraho buto
Type Ubwoko bwa AC&DC ll SPD
MID 6 ~ 12KTL3-XL
※ Max.efficiency98.5%
※ 40% byoroshye kandi byoroshye
Ikurikiranwa rya MPp ebyiri
Gushyigikira kugenzura ibyoherezwa mu mahanga
Kora urufunguzo na OLED yerekana
Andika ll SPD kuruhande rwa AC na DC
INGINGO 50 ~ 75KTL3-XL 2
※ 8 MPPTs y diseno icyaha fusibles
※ Escaneo y diagnóstico inteligente de l / V.
※ Monitoreo inteligente de cadenas
※ SPD tipo ll de CA y CC
Protección lP66 y C5
MAX 50 ~ 80KTL3 LV
※ 6 / 7MPPTSIsuzumabumenyi efficiency Gukora neza kugera kuri 99% connection Guhuza WlFl yaho monitoring Gukurikirana umurongo ※ AC&DC ubwoko bwa II SPD protection Kurinda AFCl storage Kubika amakuru kugeza ku myaka 25 side DC uruhande 2 muburyo bumwe bwashobojwe
MIN 7000 ~ 10000 TL-X
Impinduka nziza 98.1% 2/3 MPP ikurikirana
Andika ll SPD kuruhande rwa DC
Gushyigikira kugenzura ibyoherezwa mu mahanga
Kora urufunguzo na OLED yerekana
Andika ll SPD kuruhande rwa DC
Gushyigikira kugenzura ibyoherezwa mu mahanga
Kora urufunguzo na OLED yerekana
Ibicuruzwa
| Datasheet | MID 6KTL3-XL | MID 8KTL3-XL | MID 10KTL3-XL | MID 11KTL3-XL | MID 12KTL3-XL |
| Iyinjiza Ibyatanzwe | |||||
| Imbaraga.DC | 65000W | 10400W | 13000W | 13000W | 15600W |
| Umuvuduko mwinshi | 800V | ||||
| Umuvuduko wambere | 250V | ||||
| Umuvuduko wa MPPT | 160-800V | ||||
| Umuvuduko w'izina | 360V | ||||
| Icyiza. iyinjiza ryubu kuri MPPT | 25A | ||||
| Ibisohoka (AC) | |||||
| Ikigereranyo cya AC gisohoka | 6000W | 8000W | 10000W | 11000W | 12000W |
| Icyiza. Imbaraga zigaragara | 6600VA | 8800VA | 11100VA | 12100VA | 13300VA |
| Icyiza. Ibisohoka | 16.5A | 22.1A | 27.8A | 30.3A | 30.3A |
| AC nominal voltage | 133V / 230V | ||||
| Umuyoboro wa AC | 50Hz / 60Hz | ||||
| Ubushobozi | 98.8% | ||||
| Datasheet | MIN 7000TL-X (E) | MIN 8000TL-X (E) | MIN 9000TL-X | MIN 10000TL-X |
| Iyinjiza Ibyatanzwe | ||||
| Imbaraga.DC | 12000W | 12000W | 13500W | 15000W |
| Umuvuduko mwinshi | 600V | |||
| Tangira voltage | 100V | |||
| Umuvuduko wa MPPT | 60-550V | |||
| Umuvuduko w'izina | 360V | |||
| Icyiza. iyinjiza ryubu kuri MPPT | 13.5A / 27A | |||
| Ibisohoka (AC) | ||||
| Ikigereranyo cya AC gisohoka | 7000W | 8000W | 9000W | 10000W |
| Icyiza. Imbaraga zigaragara | 7000VA | 8000VA | 9000VA | 10000VA |
| Icyiza. Ibisohoka | 33.5A | 33.5A | 43A | 45.5A |
| Nominal AC voltage (intera *) | Ibisanzwe: 240V gucamo ibice, kubishaka: 208V & 240V icyiciro kimwe, 183-228 @ 208V 211-264V @ 240V | |||
| Imirongo ya gride ya AC (intera *) | 50/60 Hz (45-55Hz / 55-65 Hz) | |||
| Ubushobozi | 98.1% | |||
| Datasheet | MAC 15KTL3-XL | MAC 20KTL3-XL | MAC 22KTL3-XL | MAC 25KTL3-XL | MAC 30KTL3-XL | MAC 36KTL3-XL |
| Iyinjiza Ibyatanzwe | ||||||
| Icyiza. basabye ingufu za PV (kuri module STC) | 22500W | 30000W | 33000W | 37500W | 45000W | 54000W |
| Umuvuduko mwinshi | 1100V | |||||
| Umuvuduko wambere | 250V | |||||
| Umuvuduko wa MPPT | 200V-1000V | |||||
| Umuvuduko w'izina | 360V | |||||
| Icyiza. iyinjiza ryubu kuri MPPT | 52A / 52A / 52A | |||||
| Ibisohoka (AC) | ||||||
| Ikigereranyo cya AC gisohoka | 15000W | 20000W | 22000W | 25000W | 30000W | 36000W |
| Icyiza. Imbaraga zigaragara | 16600VA @ 220VAC | 22200VA @ 220VAC | 24400VA @ 220VAC | 27800VA @ 220VAC | 33300VA @ 220VAC | 36000VA @ 220VAC 39200VA @ 240VAC |
| Icyiza. Ibisohoka | 43.6A | 58.3A | 64.0A | 73.0A | 87.4A | 94.5A |
| Nominal AC voltage (intera *) | 127V / 220V (101.6-139.7V) | |||||
| Imirongo ya gride ya AC (intera *) | 50/60 Hz (46 ~ 54/56 ~ 64Hz) | |||||
| Ubushobozi | 98.8% | |||||
| Hoja de datos | MAX 50KTL3-XL2 | INGINGO 60KTL3-XL2 | INGINGO 70KTL3-XL2 | MAX 75KTL3-XL2 |
| Datos de entrada (CD) | ||||
| Imbaraga.DC | 100000W | 120000W | 105000W | 112500W |
| Rango de potencia máxima * | 370-650V | |||
| Voltaje de arranque | 195V | |||
| Voltaje nominal | 550V | |||
| Rango de voltaje de MPPT | 180V-850VDC | |||
| Máxima corriente por MPPT | 40A | |||
| Salida (CA) | ||||
| Potencia nominal CA. | 50000W | 60000W | 70000W | 75000W |
| Potencia aparente máxima | 55500VA | 66600VA | 66000VA @ 208V 70000VA @ 220V 73000VA @ 230V | 71000VA @ 208V 75000VA @ 220V 78400VA @ 230V |
| Voltaje nominal CA (Rango *) | 127V / 220V (101.6-139.7V) | |||
| Voltaje nominal CA (Rango *) | 127V / 220V (101.6-139.7V) | |||
| Frecuencia de umutuku CA (Rango *) | 50 / 60Hz (45 ~ 55Hz / 55-65 Hz) | |||
| Máxima eficiencia | 98.8% | |||
| Datasheet | MAX 50KTL3 LV | MAX 60KTL3 LV | MAX 70KTL3 LV | MAX 80KTL3 LV |
| Iyinjiza Ibyatanzwe | ||||
| Imbaraga.DC | 65000W | 78000W | 91000W | 104000W |
| Umuvuduko mwinshi | 1100V | 1100V | 1100V | 1100V |
| Tangira voltage | 250V | |||
| Umuvuduko wa MPPT | 200V-1000V | |||
| Umuvuduko w'izina | 585V | 585V | 600V | 600V |
| Icyiza. iyinjiza ryubu kuri MPPT | 25A | |||
| Ibisohoka (AC) | ||||
| Ikigereranyo cya AC gisohoka | 50000W | 60000W | 70000W | 80000W |
| Icyiza. Imbaraga zigaragara | 55500VA | 66600VA | 77700VA | 88800VA |
| Icyiza. Ibisohoka | 80.5A | 96.6A | 112.7A | 128.8A |
| AC nominal voltage | 230V / 400V | |||
| Umuyoboro wa AC | 50Hz / 60Hz | |||
| Ubushobozi | 98.8% | 98.8% | 99,9% | 99,9% |
